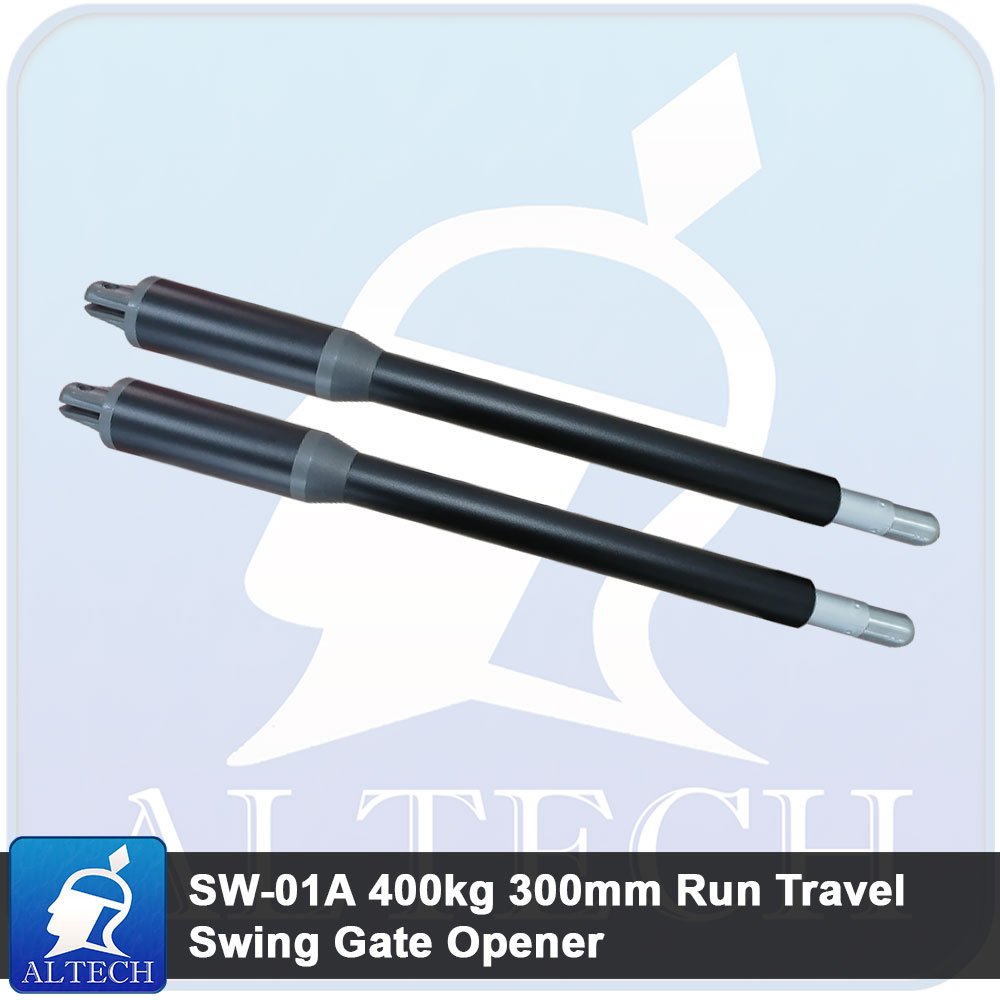

400kg 300 Run Travel Swing Gate Opener



24VDC Automatic Light Swing Gate Operator

1. Easy to install and operate, and easy to connect wired.
2. Open and close the gate by remote control and keypad.
3. Time promotion function. when open gate, speed is slow, then a little quick, and when
close the door, speed is slow again.
4. In case of power failure, release the clutch easily, and can operate the gate manually.
5. Stop working when gate meets with obstacle.
6. Rod’s max travel is 300mm.
7. Motor’s Power: 24VDC 40W
8. Running Speed: 1.6cm/s
9 .Run travel: 300mm
10. Max single leaf gate width: 2M
11. Max single leaf gate weight: 200KG


Operating Voltage: DC 24V 40W

Input Voltage: AC220V±10%/AC220V±10%,50-60Hz

Gate Max. Weight: 400kg (200kg/Leaf)

Max. Suitable Leaf’s Length: 2 meter/Leaf

Temperature: -25°C – +55°C

Quality assurance: IP55
